Multipurpose Crimp Force Monitor Hard Disk 500GB With Mouse Input

Name: Multipurpose Crimp Force Monitor Hard Disk 500GB With Mouse Input
Brand: Linquan
Price: 1 USD

Brand Name : Linquan

Model Number : TDVM-1

Certification : ISO9001, CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Internal storage : 2GB

Hard disk : 500GB

Expansion slot : PCI 1pc

Monitor resolution : 1024*768

Warranty : 1 Y

Colour : White

Contact Now

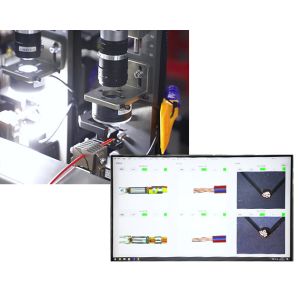

Terminal Detection Visual Monitor Crimp Force Monitor

Equipment Function

Our company develop this Terminal Detection visual display, with high pixel, high-speed shutter digicam. high performance running uninterrupted objectives at terminal pressure conditions for photodetection and evaluation. Small volume ones can be set up within the exiting automated crimping machine, not affecting the pressing device's manufacturing performance. efficiently discover and judge the appearance of the terminal after peeling and crimping.

It takes less than 100msec from detection to completion to capture the high-speed terminal by LED flash lighting and a high pixel high-speed shutter to achieve clear images. See visual inspection options displayed on the device screen for specific inspection items.

The high-speed terminal comprehensive tracking inspection

Achieve automatic online management quality

Parts of the major defective cases in the detection project

Multipurpose Crimp Force Monitor Hard Disk 500GB With Mouse Input

Product Specification

Size of detect wire	AWG32-6
Tracking Speed	2.5 m/sec
Shutter Speed	Max 1/60000 sec
Max Qty to connect the camera	2 sets
Camera pixel	30 Thousand pixels(colors)
Determination time	30-100ms
The number of products can log in	100 sets

PC Specification

	Recommended Equipment
OS	WIN 7 flagship version
CPU	Dicaryon basic frequency above 2G
Internal storage	2GB
Hard disk	500GB
Input device	Mouse, keyboard
Monitor resolution	1024*768
Expansion slot	PCI 1pc

Control Box Specification

Power source	AC 220V
LED input current	80 mA
LED output time	10 ms
LED minimum time interval	4 us

Fully automatic press that can be carried
JAM: CPR-ZERO Series, JN03 Series, JN07 Series
Shinmaywa: TRD301, TR201, 202, C551SZ
Komax: Gamma333, Alpha355, 355S
